Nyma Makersplaats

The Nyma Makerspaats project is a case study in sustainable refurbishment and energy retrofit of a heritage building. A VirtuHOT HD installation provides both domestic hot water and space heating to the businesses working in the historic building.

Breakdown of project

Client
Nyma Markersplaats

Sector
Commercial

Location
Nijmwegen (NL)

Technology
VirtuHOT HD

Brief

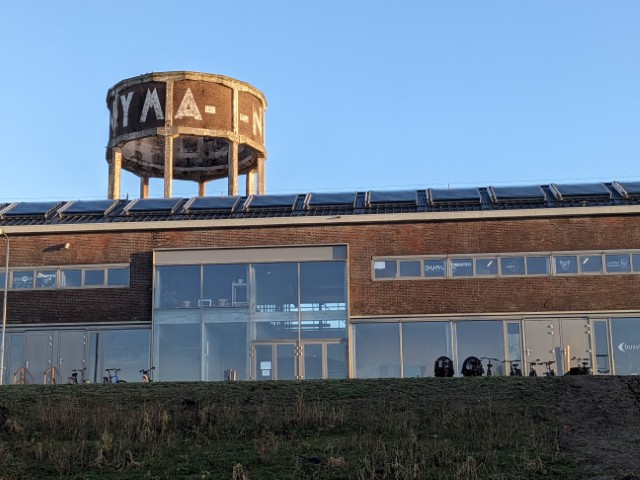

The original building manufactured synthetic silks and had fallen into disrepair. Over the last 3 years, the Nyma Makersplaats has been refurbished for use by businesses producing items as diverse as sculptures, furniture, cargo-carrying bicycles, wooden musical instruments, ceramics, and renovated cars.

Including energy efficiency to reduce heat-related carbon emissions and ensure sustainable heat generation was part of the original brief to ensure a modern and sustainable refurbishment.

This project was designed and delivered by Naked Energy’s exclusive distribution partner for Belgium, The Netherlands, and Luxembourg, VenFeld.

Virtu Solution

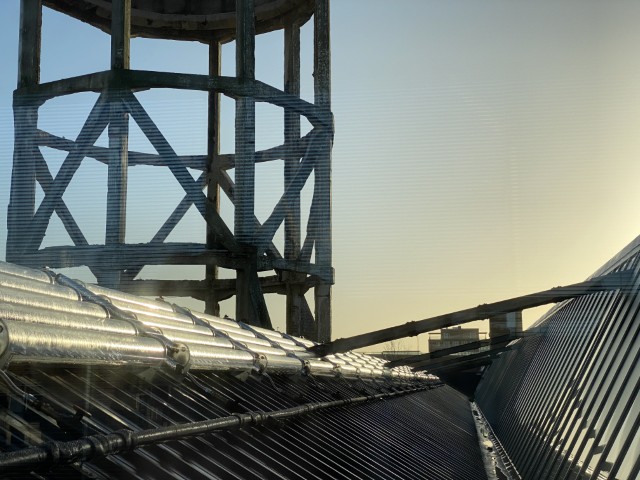

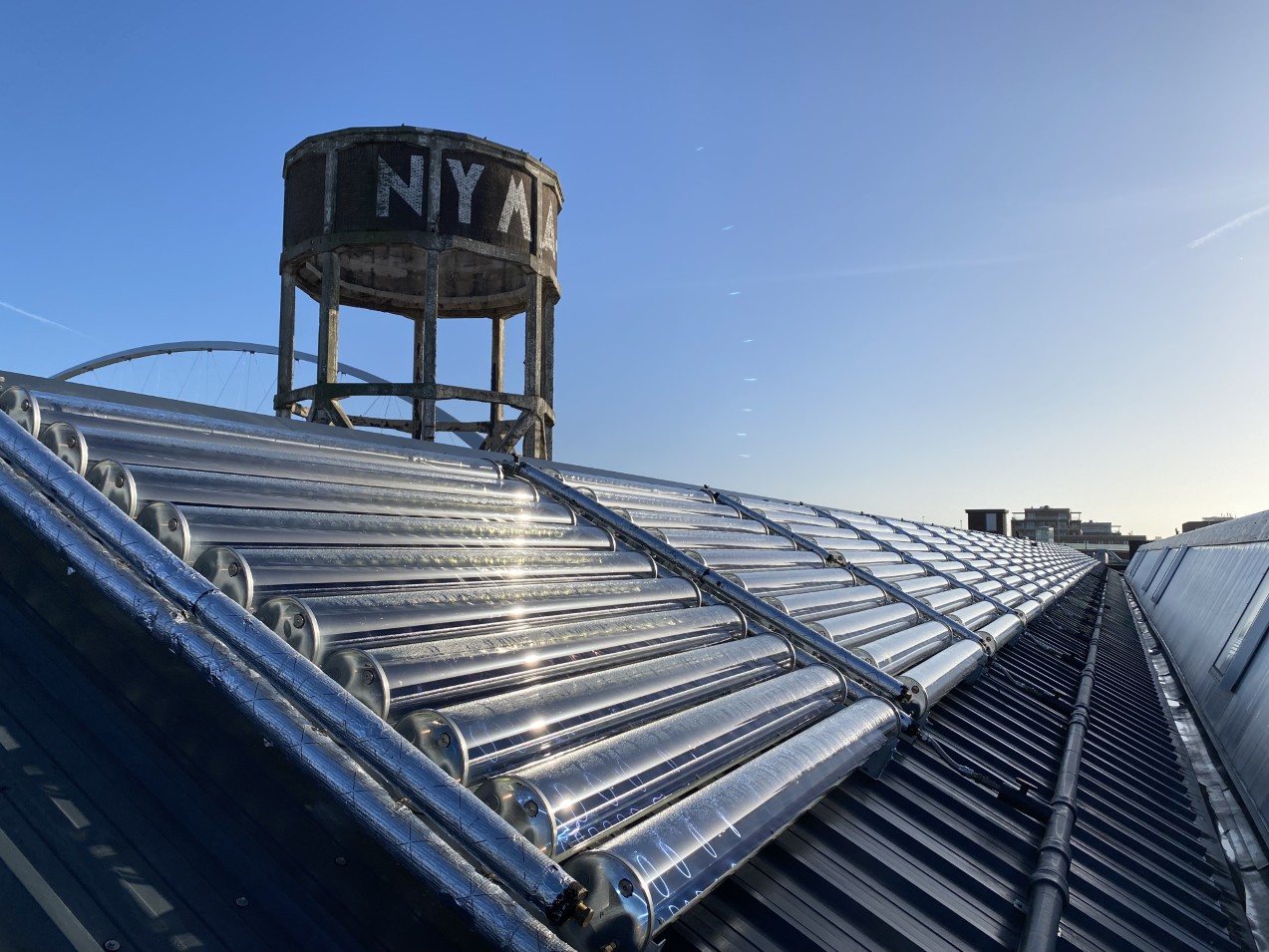

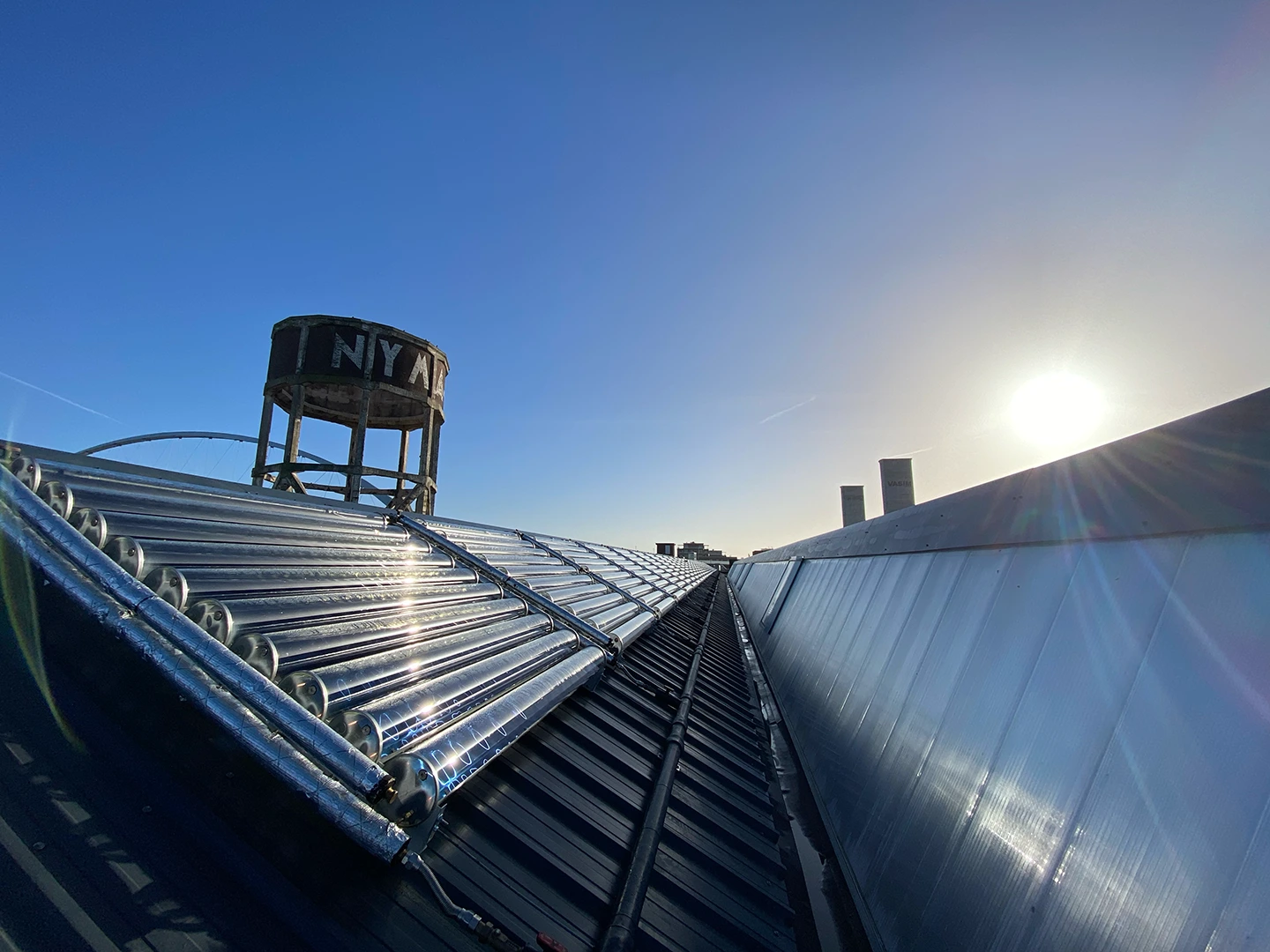

685 VirtuHOT HD collectors operate in conjunction with a heat pump system, generating both hot water and space heating for the building. The Virtu installation has a capacity of 199 kW and covers 327m2 across three long arrays on the south-facing elements of the factory roof. Additionally, space heating is provided through water-to-air fan coil units, which are well-suited to the post-industrial aesthetic of the development. The plant room includes an 18,000L hot water tank.

Benefits

The installed system significantly reduces heating bills and provides excellent levels of thermal comfort in the workshops and shared spaces of the building. The system is also designed to be expanded and is flexible enough to meet the potential different future uses of the building, such as the installation of solar driven cooling systems for the summer months.

✓

37 tonnes of annual CO2 savings

✓

199 kWpth thermal capacity

✓

159,605 kWh annual thermal output
